Client: Vista Dental

Product: EndoUltra

Involvement:

Tasked with incorporating Vista’s internal components into a functional package based on preliminary industrial design imagery, we went from project specification to fully functioning prototype in approximately 6 weeks. The cordless design of the ultrasonic handpiece includes an autoclavable removable sleeve, ergonomically enhanced over-molded contours, LED work-light for improved visibility, and an LED battery indication light.

  • Industrial Design Refinement
    • Aesthetic, usability, and functionality enhancements
    • CAD surfacing
    • Photo-realistic renderings
  • Mechanical Engineering
    • Detail 3D CAD design of product enclosures
    • Design For Manufacture and Assembly (DFMA)
    • 2D Detail Drawings
  • Prototyping
    • Looks-Like Works-Like rapid prototypes

What is it? The EndoUltra is the only cordless activator unit capable of generating the tip frequency (40,000Hz) required to create sufficient acoustical streaming and the cavitation necessary to effectively clean, penetrate, and remove vapor lock.

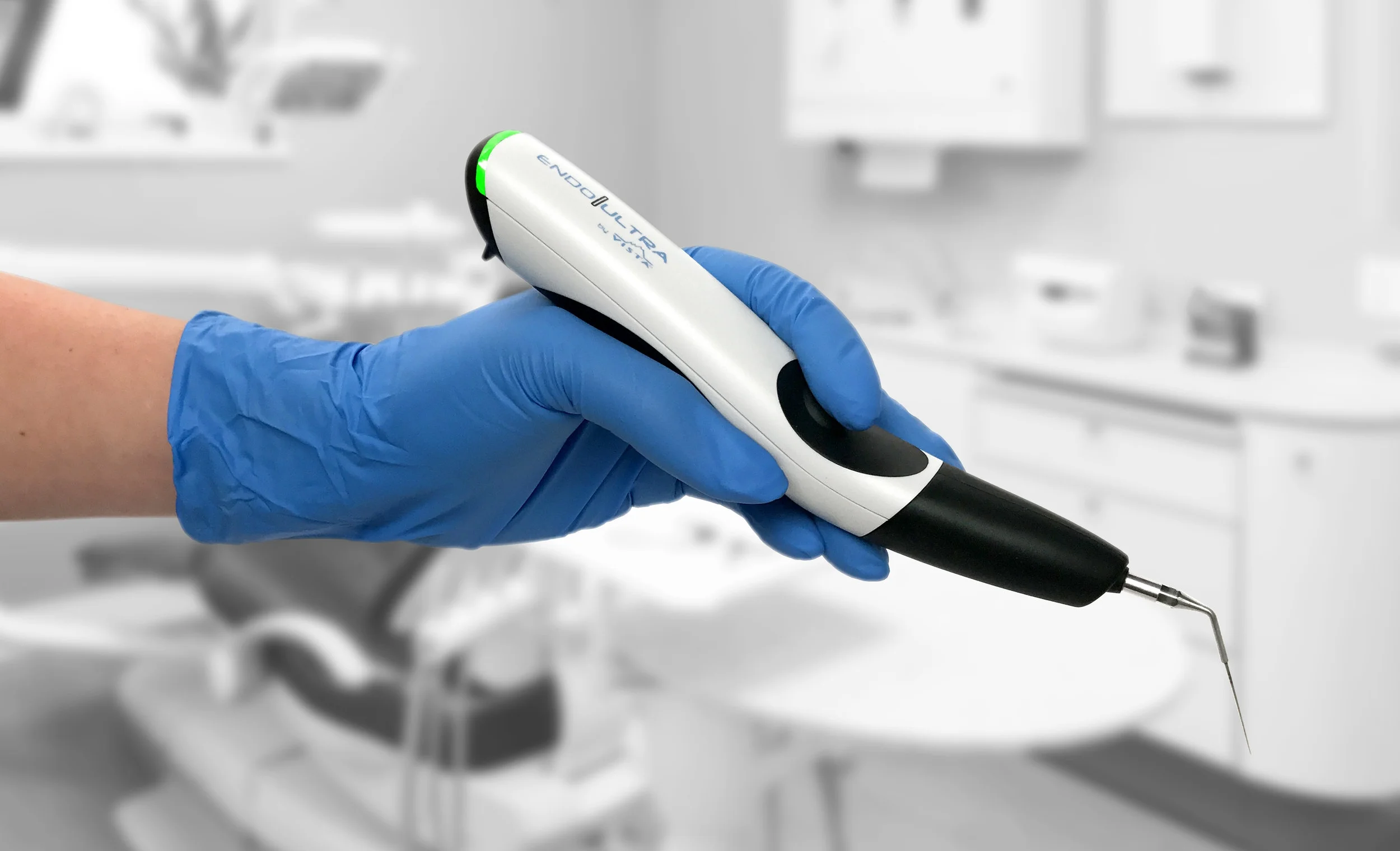

 Production Model

Production Model
